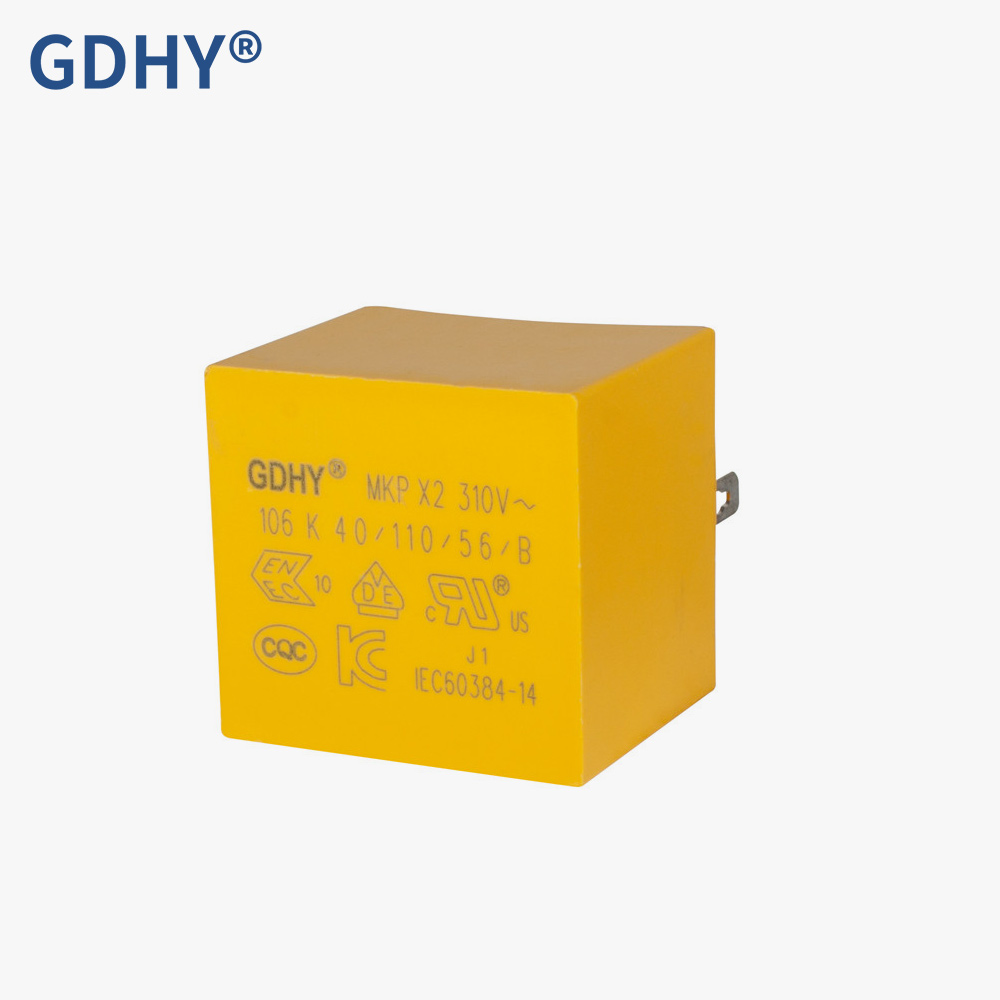

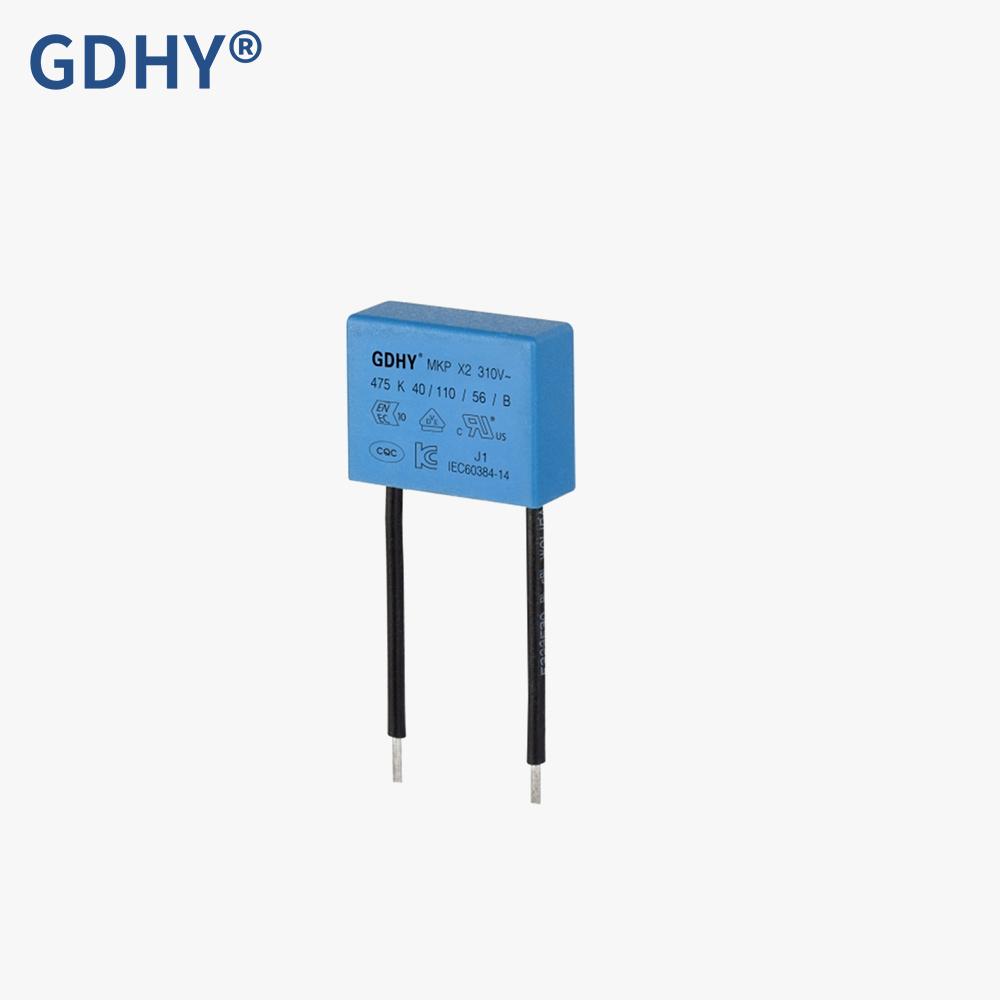

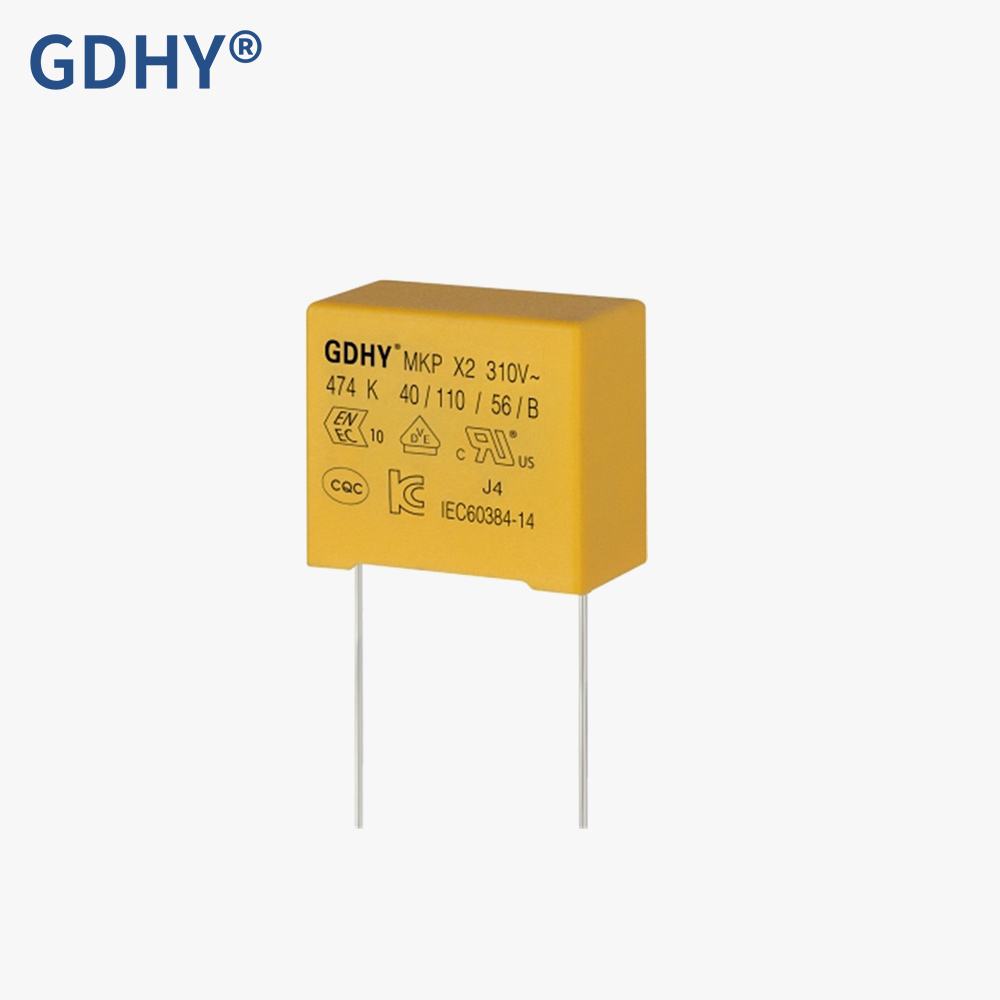

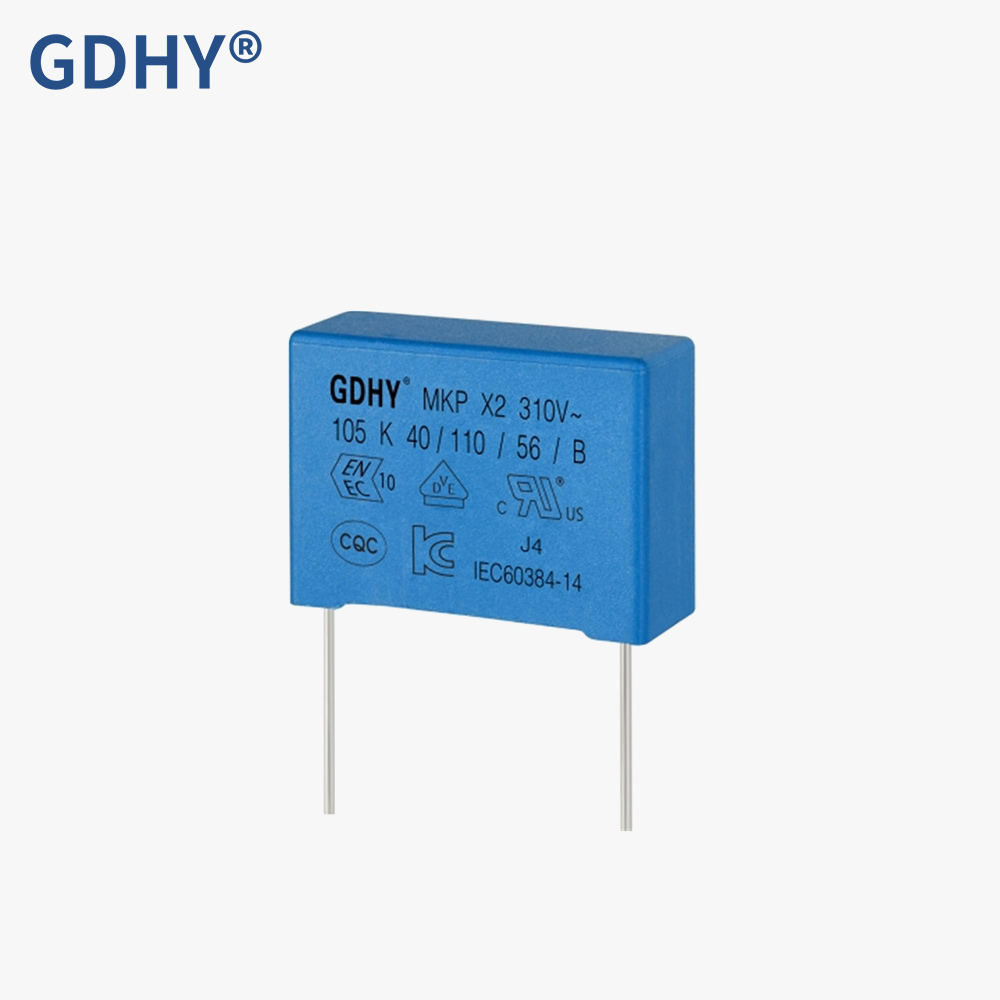

GDHY MKP-X2 safety capacitors interference suppression film capacitors ac safety capacitors

Safety capacitors are widely used in the industry today. High reliability to prevent active or passive flammability, strong self-healing, high voltage strength, low capacity fading, low impedance and strong interference suppression. The operating temperature can reach more than 110℃. They are used in the power supply filter to filter the power supply and filter the common mode and differential mode interference respectively. For safety reasons and EMC considerations, it is recommended to add a safety capacitor at the power inlet.

AC safety capacitors are encapsulated with highly flame-retardant epoxy resin powder, meet the standard of UL94V-0. Sprayed five-component alloy metal powder, the thickness is not less than 0.35mm, and the electrical performance is good. Large dielectric constant and high withstand voltage, all use high-quality metallized films imported from Japan, South Korea or domestic listed companies. Fully automatic spray soldering technology, good contact of solder joint and high fusion. Use high-strength, high-conductivity CP wire as lead, the thickness of the tinned layer on the surface is more than 6um, diameter is more than 0.7mm.

If the MKP-X2 capacitor in the filter is broken down, it is equivalent to a short circuit in the AC grid, which will at least cause the equipment to stop working; Safety Capacitors for Suppressing Power Supply Electromagnetic Interference when using safety capacitors in power supply over-line circuits to eliminate noise, not only normal voltages, but also the generation of abnormal pulse voltages (such as lightning) must be considered, which may cause capacitors smoke or fire.

Safety capacitors are specially designed for Suppression of Power Electromagnetic Interference, widely applied to anti-interference situations such as power supply across lines and other AC field. Interference suppression film capacitors wide range of applications, such as the followings: charger, LED lights, kettle, rice cooker, induction cooker, power supply, water heater, washing machine, the scope of application of the product is not limited to this.

●  Metallized polypropylene film dielectronic

●  Non-inductive winding structure

●  Plastic shell encapsulation

●  Withstand over voltage shocks

●  Good appearance consistency

Especially design for HID ballast. Widely used in high frequency, DC and pulse circuit.
