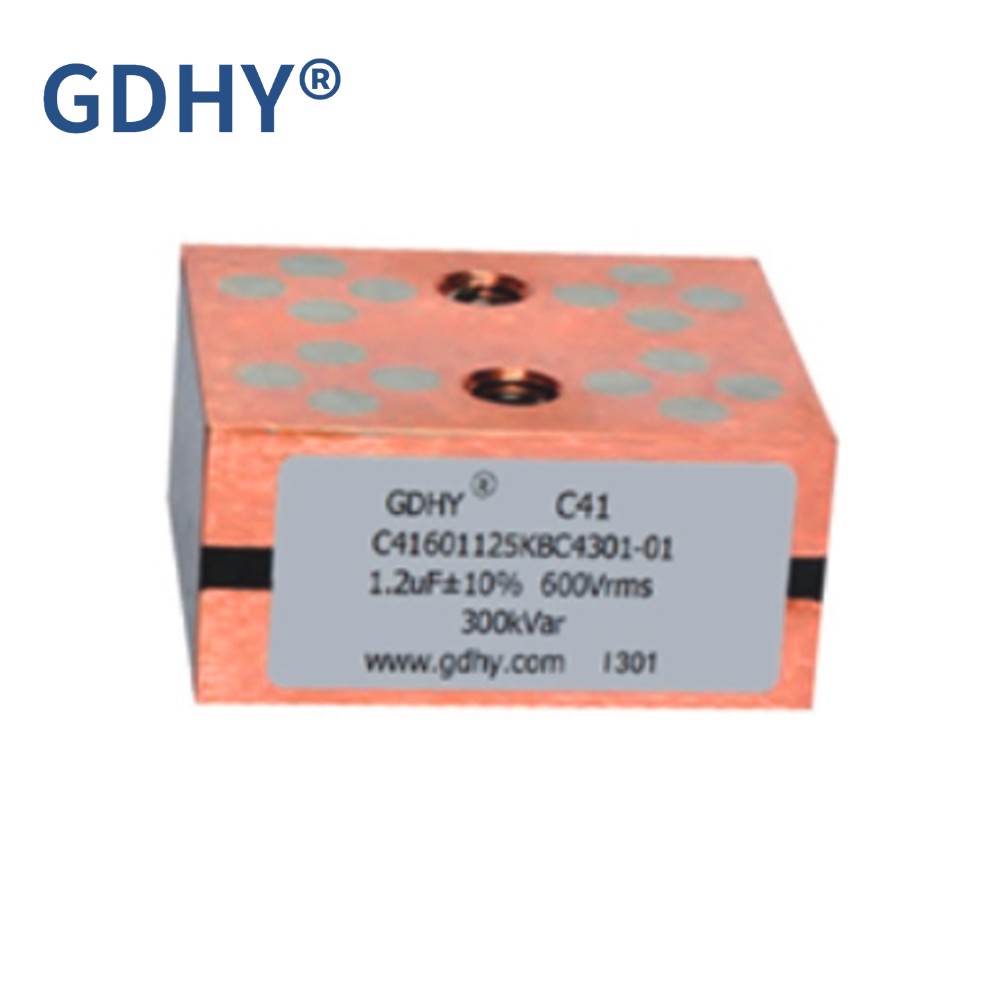

GDHY C41-BC4 film capacitor high frequency 1kv capacitor capacitor for trane ac unit
Film capacitor high frequency is widely used in the high frequency and high power industrial equipments today. It is very compact and have a high power/volume ratio, thus ensuring optimal performance.
GB/T 3984-2004 IEC 60110.1
Operating Temperature Range
±5% ~ ±10%
Test voltage between terminals
1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
tgδ≤5×10-4 at 25℃±5℃，1kHz
100000h at UN and 70℃，30000h at Urms
● Conduction water-cooled
● Polypropylene dielectric
● Low dissipation factor(tgδ), low ESL, low ESR
● High voltage, high frequency and high dv/dt
● Can bear large current, excellent heat dissipation
