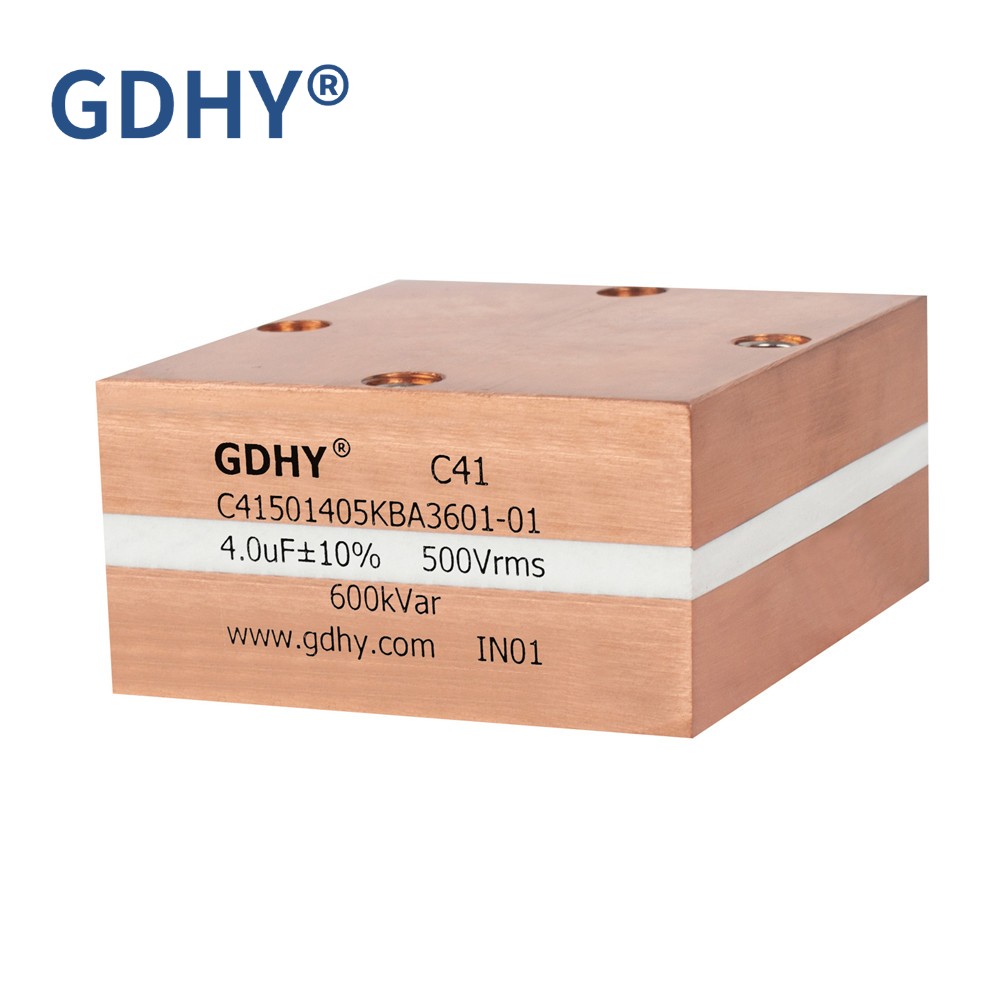

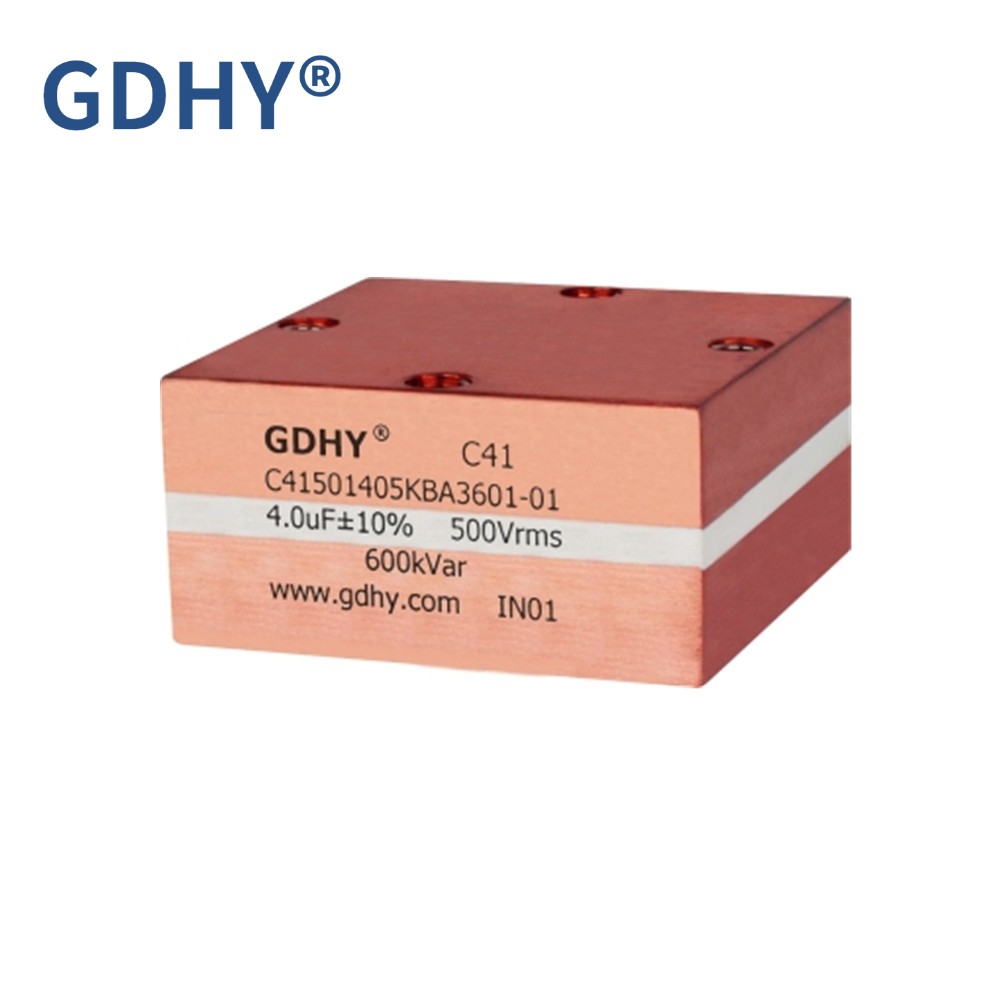

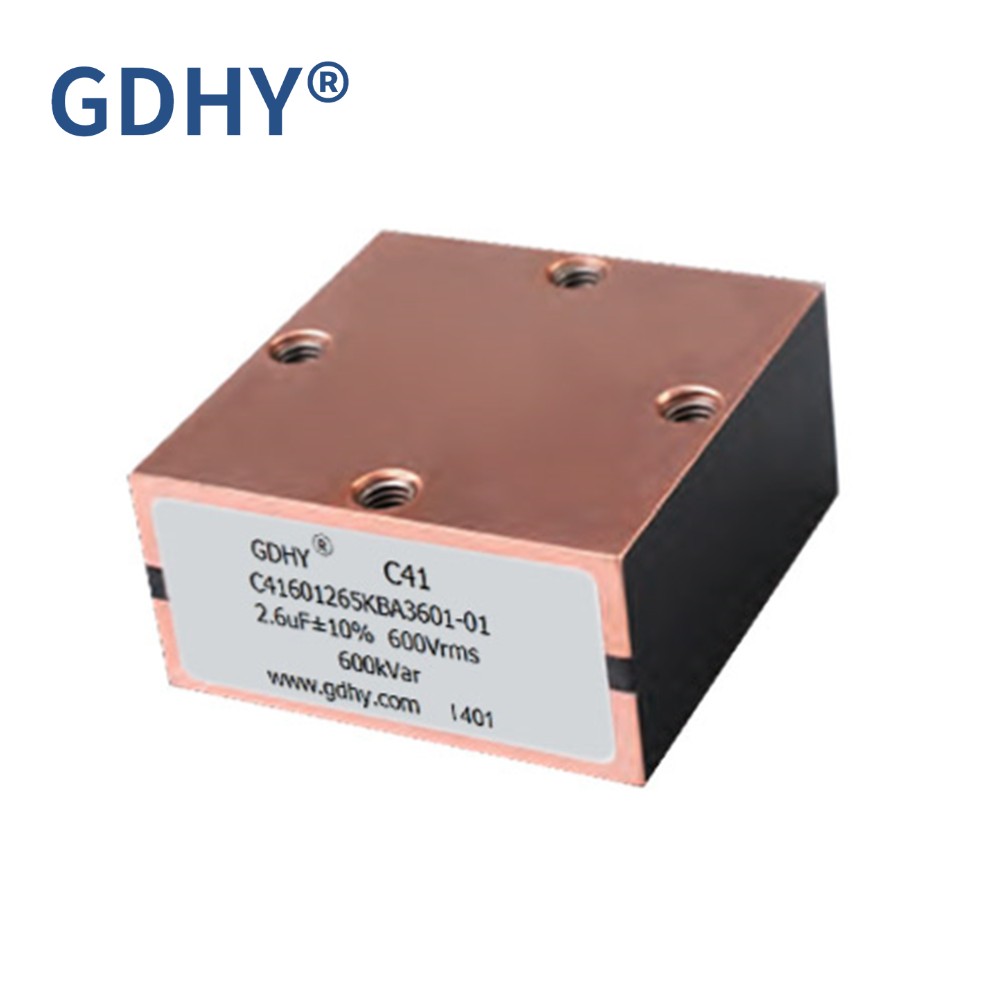

GDHY C41-BA3 capacitor discharge spot welding machine high energy storage capacitors water cooled resonant capacitor
Capacitor discharge spot welding machine is playing a very important role in the industy today. It is very compact and have a high power/volume ratio, thus ensuring optimal performance.
GB/T 3984-2004 IEC 60110.1
Operating Temperature Range
±5% ~ ±10%
Test voltage between terminals
1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
tgδ≤5×10-4 at 25℃±5℃，1kHz
100000h at UN and 70℃，30000h at Urms
● Conduction water-cooled
● Polypropylene dielectric
● Low dissipation factor(tgδ), low ESL, low ESR
● High voltage, high frequency and high dV/dt
● Can bear large current, excellent heat dissipation
