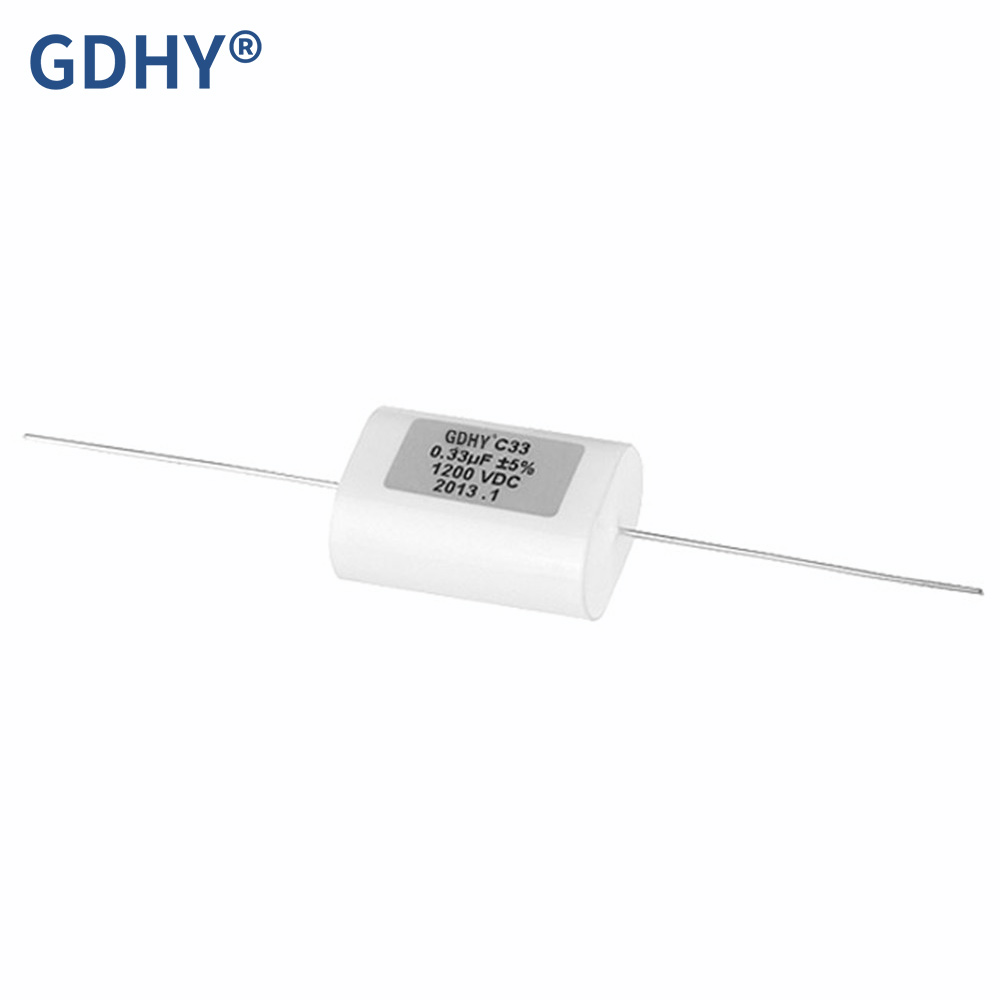

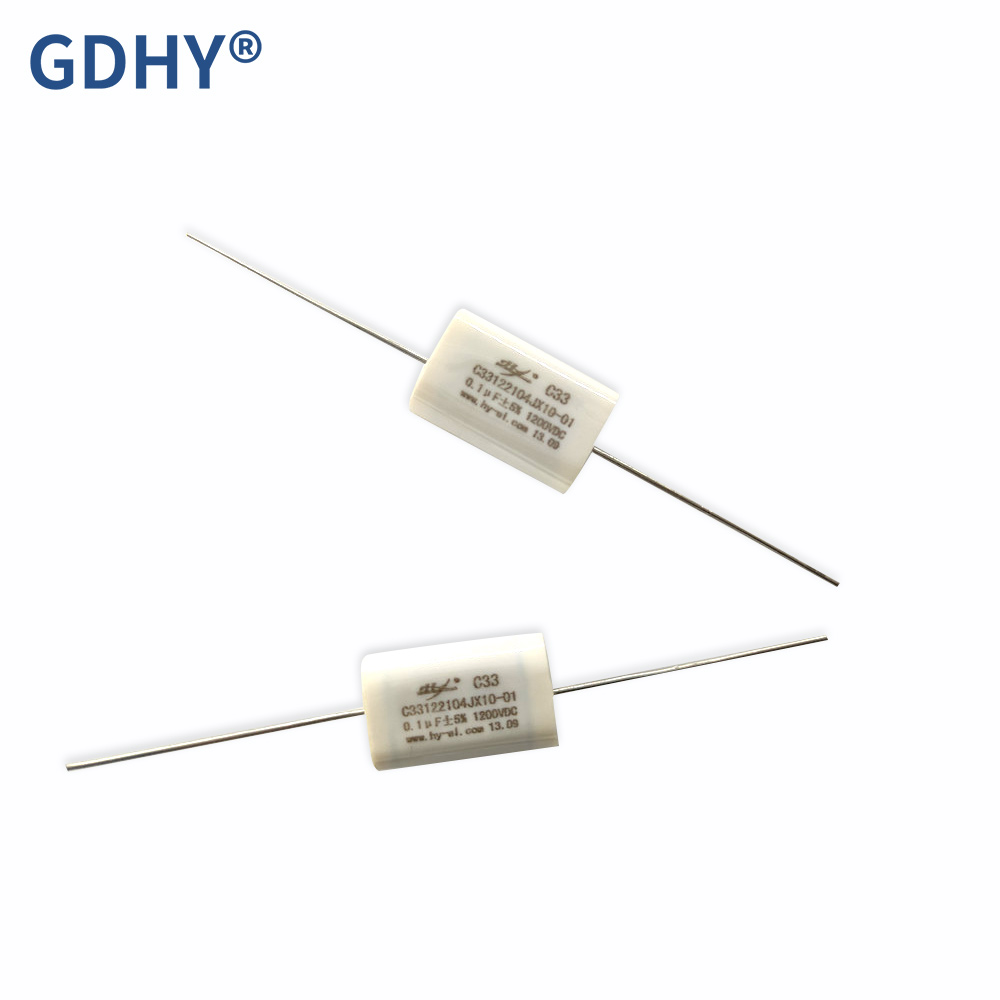

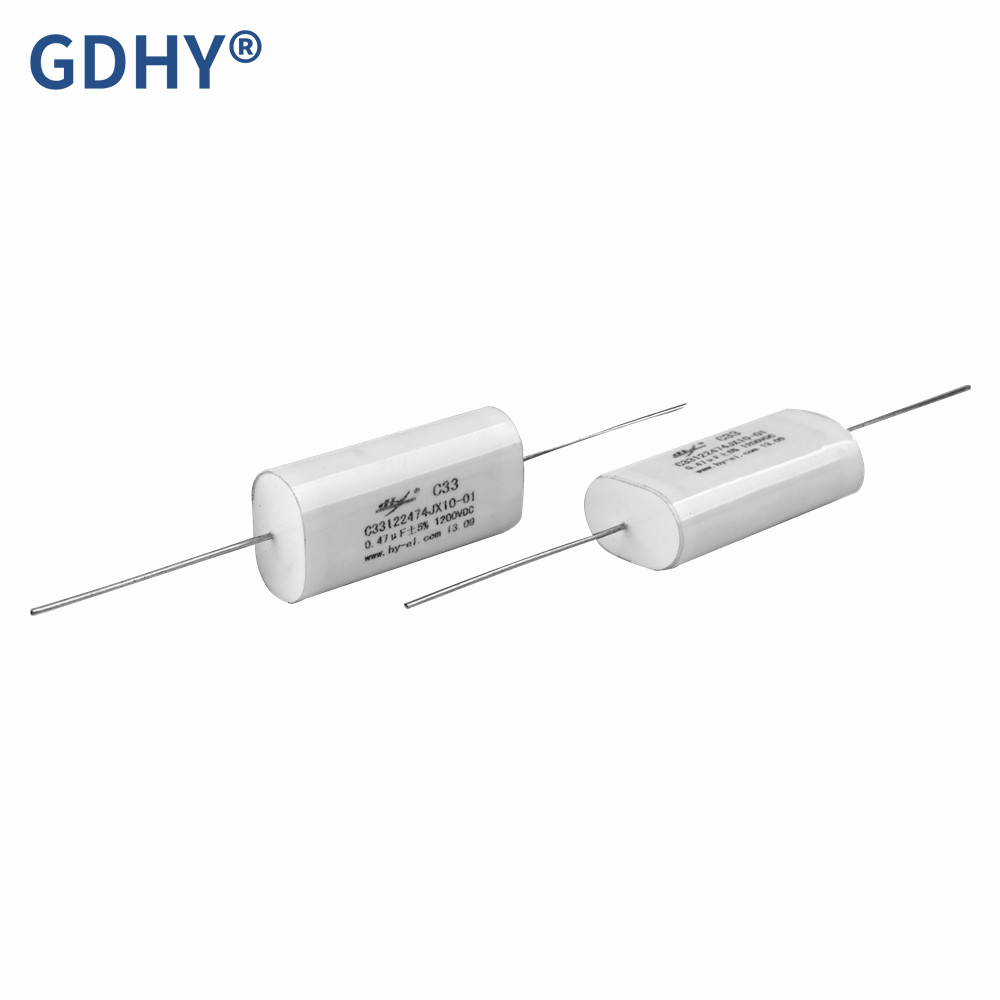

GDHY C33 UPS capacitor metallized polyester film capacitor IGBT buffer capacitor

The snubber capacitor acts like a low-pass filter in the circuit to absorb spikes. It is usually used in insulated gate bipolar transistors (IGBTs) to eliminate the peak voltage caused by the stray inductance of the busbar and avoid damage to the insulated gate bipolar transistors.

The structure of the IGBT buffer capacitor is characterized by double-sided metallized polypropylene film inner string structure, special internal design and end-face gold spray technology, so that the capacitor has low inductance, multiple lead designs such as tinned copper lugs, tinned copper wire leads,copper nut leads, can withstand higher ripple current, high DU/DV and High overpressure capability. Flame retardant plastic shell, epoxy resin encapsulation, in line with UL94V-0 standard. The UPS capacitor is used for various IGBT buffer circuit surge absorption, various high frequency resonance circuits. It is also used in the output of Class-D audio amplifiers. A snubber network damps the ringing and overshoot due to fast switching of high currents. When the transistor you use to switch the current turns off, it generates a high-voltage spike that could damage the device.This spike will also generate electromagnetic interference (EMI). Be aware that EMI is caused by current in a loop. If your snubber network routes current in a large loop, it will increase rather than reduce EMI.

A UPS capacitor snubber capacitor is designed to increase the circuit's performance, but it also increases the IGBT's ability to exploit high-speed switching capabilities more efficiently, potentially allowing for even high-frequency control. A high-performing capacitor is ideal for use in a high-performance, high-power circuit as it must be able to cope with its challenging system effects as well.

Metalized polyester film capacitor IGBT snubber capacitors with self healing are used in high voltage, high current and high pulse applications such as IGBT protection circuits, GTO snubber, snubber network, protection circuits in SMPS, energy conversion and control in power electronics, UPS, inverter, induction heaters, welding machine for IGBT snubber protection.

● PET tape wrapping, epoxy resin sealing

● Axial leads with tinned copper wire

● High voltage, small tgδ, low temperature rise

● Low ESL and ESR

● High pulse current, high dv/dt

IGBT snubber circuit; IGBT snubber equipment.Widely used in power electronic equipment UPS, inverter, induction heater, welding machine for protect and absorb peak current and peak voltage.
