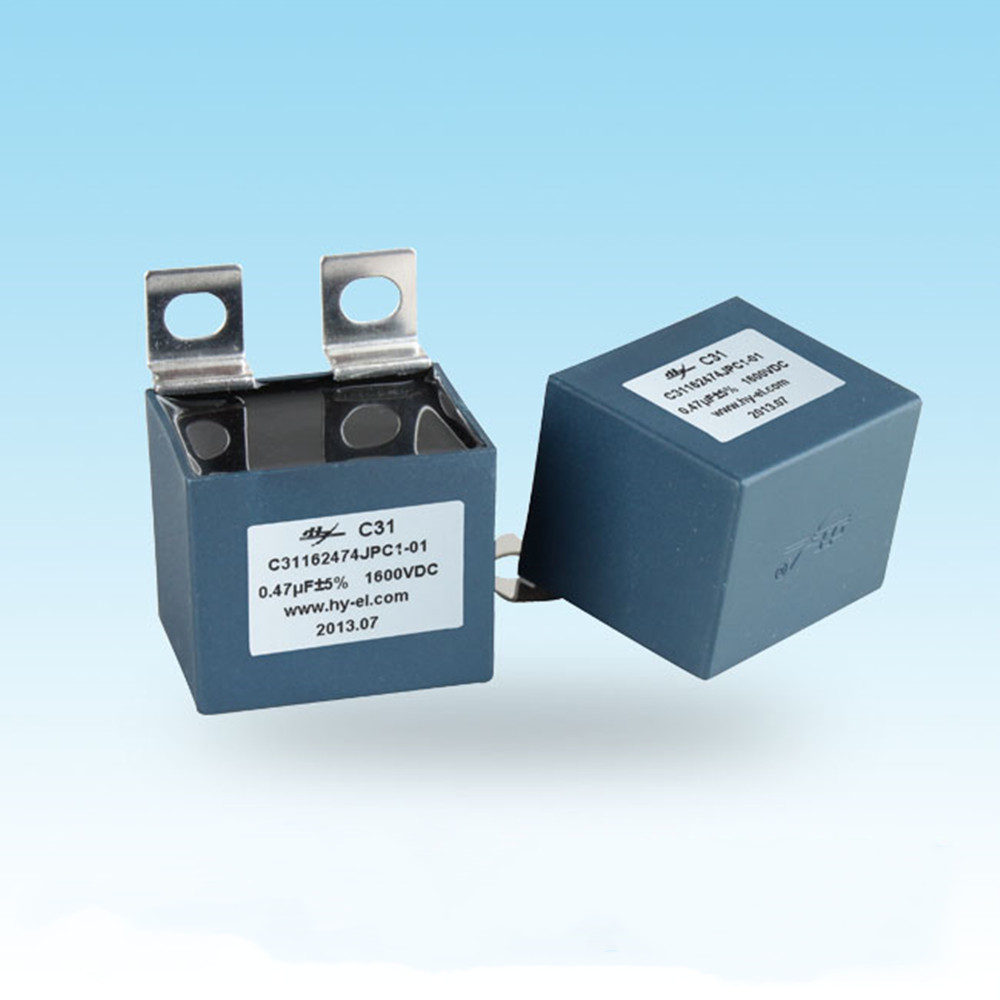

IGBT Snubber Capacitors Selection Guide
IGBT (Insulated Gate Bipolar Transistor) snubber capacitors are used to reduce the voltage and current spikes caused by switching operations in power electronics applications. Proper selection of these capacitors is essential for the reliable and efficient operation of IGBT-based systems. Here are some guidelines to help you choose the right IGBT snubber capacitors:
1. Capacitance Value: The capacitance value of the snubber capacitor should be chosen based on the switching frequency of the IGBT and the inductance of the circuit. Generally, the capacitance value should be large enough to absorb the energy generated during switching but not too large that it causes high current ripple or slows down the switching speed.
2. Voltage Rating: The voltage rating of the snubber capacitor should be equal to or higher than the peak voltage in the circuit. It is important to choose a voltage rating that can withstand voltage spikes and transients caused by the inductive loads.
3. Ripple Current Rating: The ripple current rating of the snubber capacitor should be high enough to handle the high-frequency AC current generated during switching operations. A capacitor with a low ripple current rating can fail prematurely due to excessive heating.
4. ESR (Equivalent Series Resistance): The ESR of the snubber capacitor should be low to minimize power loss and improve efficiency. A low ESR also helps to reduce voltage spikes and noise in the circuit.
5. Temperature Rating: The temperature rating of the snubber capacitor should be high enough to withstand the operating temperature of the circuit. High-temperature ratings can also improve the reliability and lifespan of the capacitor.
6. Package Size: The package size of the snubber capacitor should be compatible with the available space in the circuit. Smaller capacitors are often preferred due to their lower parasitic inductance and lower ESR.
7. Dielectric Material: The dielectric material of the snubber capacitor should be chosen based on the application requirements. Ceramic capacitors are preferred for high-frequency applications due to their low ESR and low parasitic inductance. Film capacitors are preferred for high voltage applications due to their superior voltage rating.
Overall, proper selection of IGBT snubber capacitors requires careful consideration of several factors such as capacitance value, voltage rating, ripple current rating, ESR, temperature rating, package size, and dielectric material. It is recommended to consult with a capacitor manufacturer or an experienced engineer for assistance in selecting the right snubber capacitors for your application.
Necessity of Using the Snubber Circuit
These are placed across the various switching devices like transistors, thyristors, etc. Switching from ON to OFF state results the impedance of the device suddenly changes to the high value. But this allows a small current to flow through the switching device. This induces a large voltage across the device. If this current reduced at faster rate more is the induced voltage across the device and also if the switching device is not capable of withstanding this voltage the device may burn out. So auxiliary path is needed to prevent this high induced voltage.
Similarly, when the transition is from OFF to ON state, due to uneven distribution of the current through the area of the switch overheating will takes place and eventually it will be burned. Here also snubber is necessary to reduce the current at starting by making an alternate path.
Snubbers in switching mode provides one or more of the following functions:
Snubbers are circuits that are commonly used in switching-mode power converters to provide one or more of the following functions:
Reduce voltage spikes: When a switch is turned off, the energy stored in the parasitic capacitance and inductance of the circuit can create high voltage spikes. These spikes can cause damage to the switch and other components in the circuit. Snubbers are used to reduce these voltage spikes by dissipating the energy stored in the parasitic components.
Reduce electromagnetic interference: Voltage spikes can also create electromagnetic interference (EMI) that can interfere with other electronic devices. Snubbers can reduce EMI by limiting the rate of change of the voltage across the switch.
Improve efficiency: Snubbers can improve the efficiency of the converter by reducing losses caused by the voltage spikes. When a voltage spike occurs, some of the energy is lost as heat in the switch and other components. By reducing the magnitude of the spikes, snubbers can reduce these losses and improve efficiency.
Increase reliability: By reducing voltage spikes and EMI, snubbers can increase the reliability of the converter by reducing stress on the components and preventing damage from electrical noise.
Overall, snubbers play an important role in ensuring the reliable and efficient operation of switching-mode power converters.
Capacitance value and series inductance
The capacitance value and series inductance are important parameters to consider when designing a snubber circuit.
The capacitance value determines the amount of energy that can be stored in the snubber capacitor. A larger capacitance value will result in more energy being stored and dissipated during each switching cycle. However, a larger capacitance value may also increase the amount of EMI generated by the circuit.
The series inductance represents the parasitic inductance in the circuit that can contribute to voltage spikes. A larger series inductance can increase the magnitude of the voltage spikes, making it more difficult to control them using a snubber circuit. Therefore, it is important to minimize the series inductance in the circuit.
In general, the capacitance value and series inductance should be chosen such that the snubber circuit provides adequate protection against voltage spikes and EMI while not significantly impacting the efficiency of the converter. The values should be carefully selected based on the specific requirements of the circuit and the characteristics of the components used.
Pulse handling capability
Pulse handling capability is an important characteristic of a snubber circuit, particularly in high-power applications. Pulse handling capability refers to the ability of the snubber circuit to withstand high voltage and current pulses without degrading or failing.
When a snubber circuit is subjected to a high voltage or current pulse, the components in the circuit can experience significant stress that can cause damage or failure. This can occur if the snubber circuit is not designed to handle the magnitude and duration of the pulse.
To ensure that a snubber circuit has adequate pulse handling capability, the components used in the circuit should be selected to have appropriate voltage and current ratings. The snubber circuit should also be designed with sufficient margin to ensure that it can handle the expected voltage and current transients without degrading or failing.
In addition, the layout and construction of the snubber circuit can also affect its pulse handling capability. For example, the circuit should be designed with appropriate trace widths and spacing to minimize parasitic inductance and capacitance. The components should be properly mounted and cooled to ensure that they can handle the expected power dissipation.
Overall, pulse handling capability is an important consideration when designing a snubber circuit for high-power applications, and it requires careful attention to component selection, circuit design, and construction.
